The basic process control trainers are designed to understand the elements and operation of most common industrial processes namely, Level, Flow, Pressure, and Temperature. Designed to be pilot modeled with standard industrial components, these trainers explicit the feeling of controlling a reduced sized industrial plant with all features of control. A state of art software with a handful of features like, single click connect, log, export options along with trend plot and process animation will be supplied along with the hardware to control the process trainers.

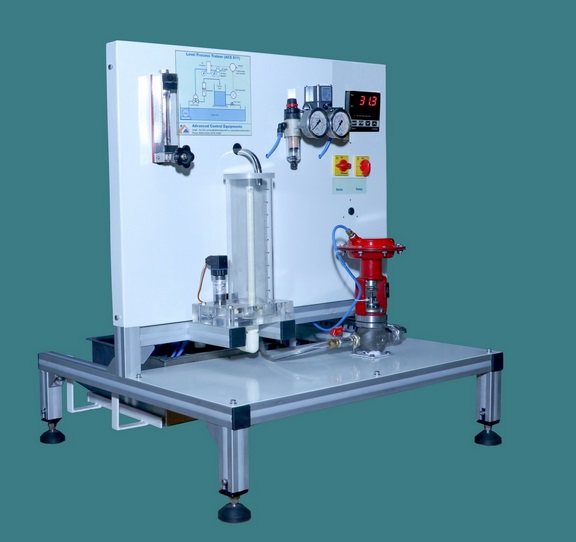

Level Process Trainer (ACE 101)
The Level Process Trainer is a compact, table top equipment with industrial standard components. The recirculated water design and anodized aluminum structure makes it durable and corrosion free.
Components
List of Experiments
|

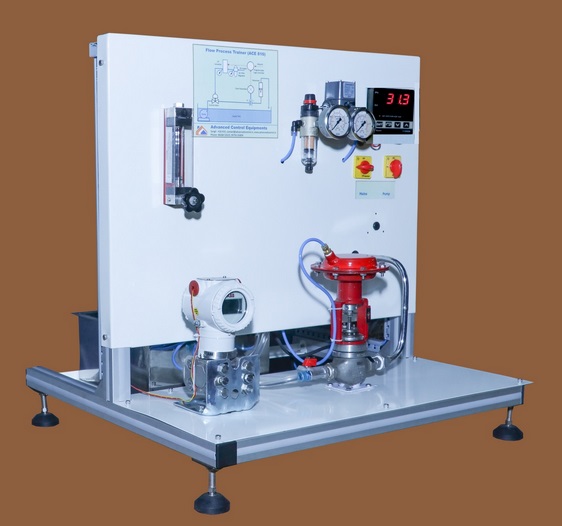

Flow Process Trainer (ACE 102)
The Flow Process Trainer is a compact, table top equipment with recirculated water design. The flow is measured and displayed by a differential pressure transmitter and an orifice arrangement.
Components
List of Experiments
|

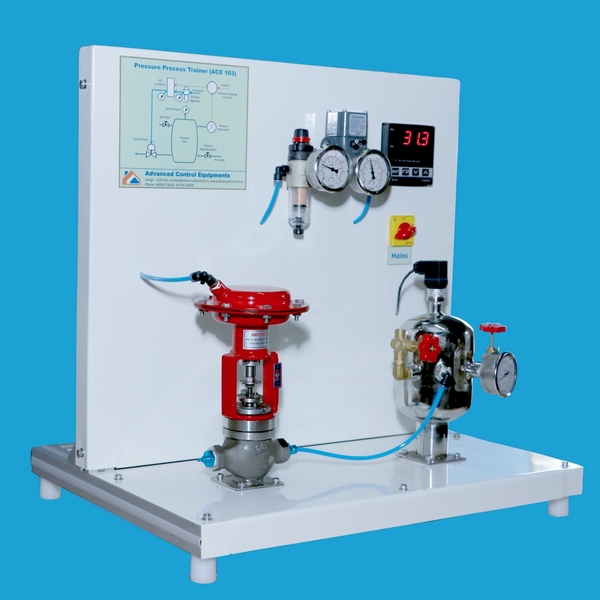

Pressure Process Trainer (ACE 103)
The Pressure Process Trainer is a compact, table top equipment with stainless steel process tank, pressure indication arrangement, control valve and high pressure relief valve.
Components
List of Experiments
|

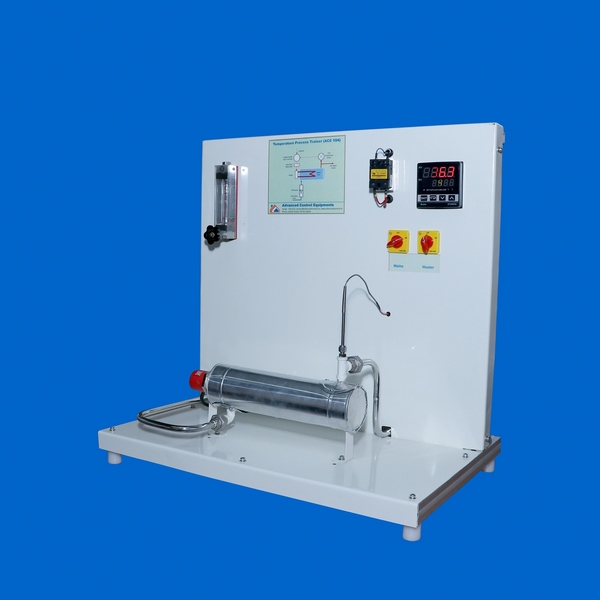

Temperature Process Trainer (ACE 104)
The Temperature Process Trainer consists of a process tank fitted with a heater, rotameter and solid state relay (SSR). The temperature of the tank is measured by a RTD temperature transmitter. The heater supply is controlled by a digital indicating controller.
Components
List of Experiments
|

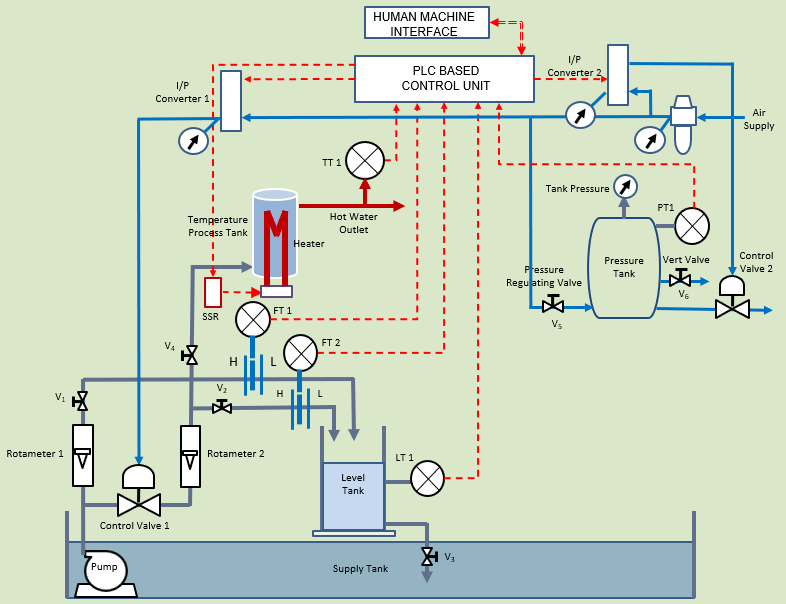

Multi Process Trainer (ACE 105)
The Multi Process Trainer is designed to utilize minimum required components and pipelines to understand the characteristics of basic processes like Level, Flow, Pressure and Temperature in a single setup.
Components
List of Experiments
|

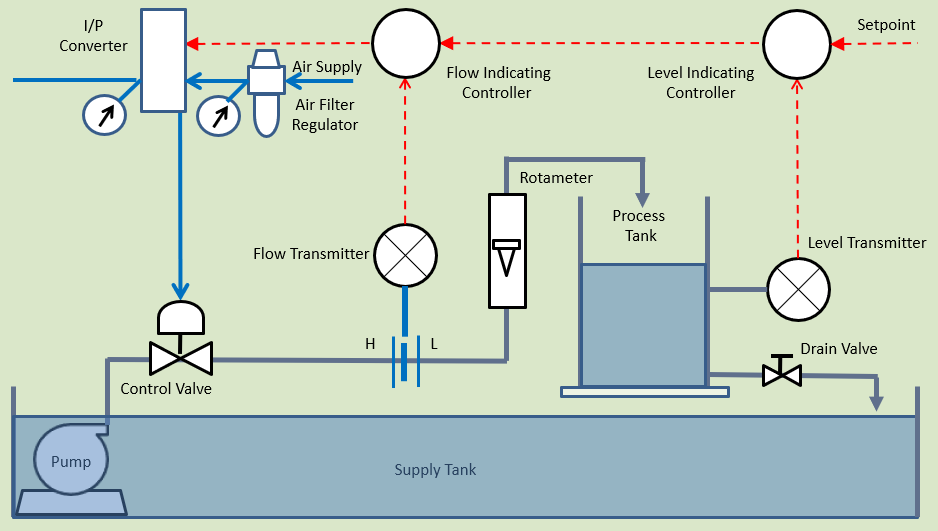

Cascade Process Trainer (ACE 106)
The Cascade Process Trainer consists of two loops namely the flow loop (Inner loop) and the level loop (Outer loop). The output of the primary (Level) loop will go as the setpoint to the secondary (Flow) loop. The setup is designed to perform Level, Flow and Cascade experiments.
Components
List of Experiments
|

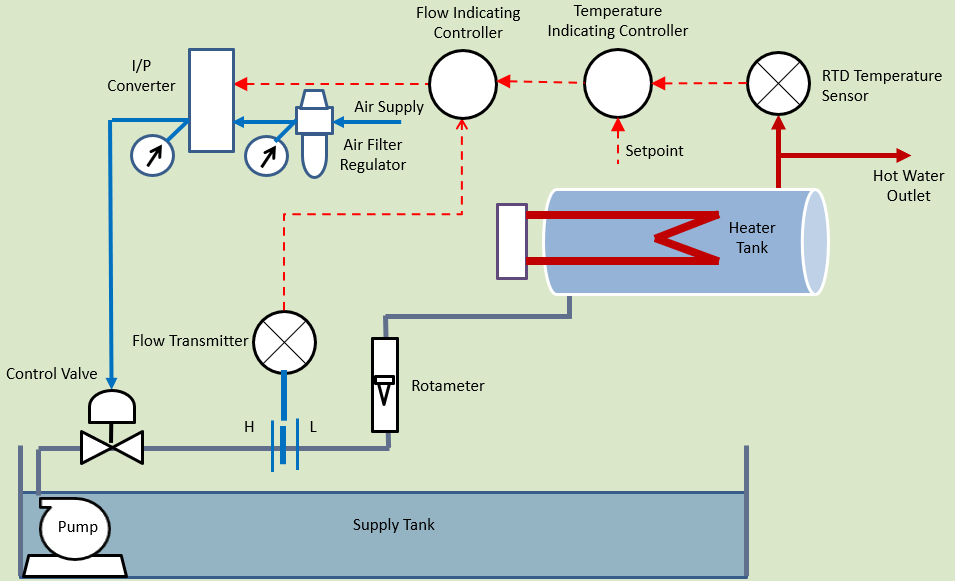

Cascade Process Trainer (ACE 107)
The Cascade Process Trainer (ACE 107) consists of two loops namely the flow loop (Inner loop) and the temperature loop (Outer loop). The setup is designed to perform Temperature, Flow and Cascade experiments.
Components
List of Experiments
|

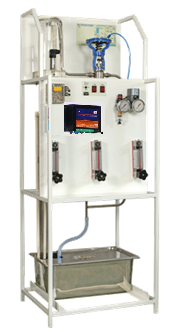

Multi Variable Process Trainer (ACE 108)
The Multi Variable Process Trainer is designed to perform Level, Flow, Cascade, Feed Forward, Ratio experiments and designed for standalone placement and access. A WiFi DAQ (ACE 2007) is used in this setup for monitoring and controlling the process.
Components
List of Experiments
|
Interacting and Non-Interacting Level Process Trainer - Computerised (ACE 109)
The Interacting and Non-Interacting Level Process Trainer is designed to understand the elements of second order process and its control. It consists of three level process tanks fitted with level transmitters and necessary drain valve arrangements.
Components
List of Experiments
|

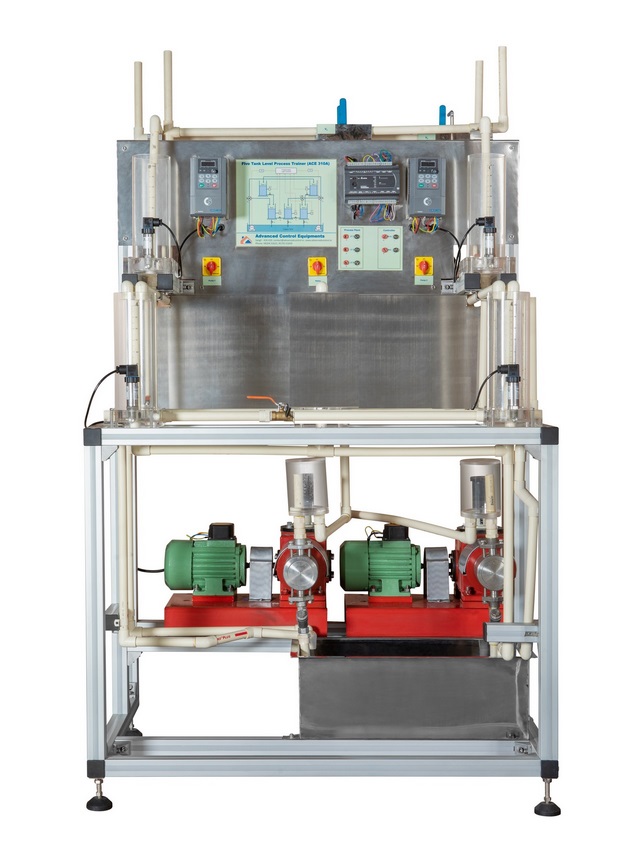

Four Tank Level Process Trainer (ACE 110)
Four Tank Level Process trainer (ACE 110), also called as Quadruple Tank system is designed to understand the basic and advanced study in level control system.
Components
List of Experiments
|

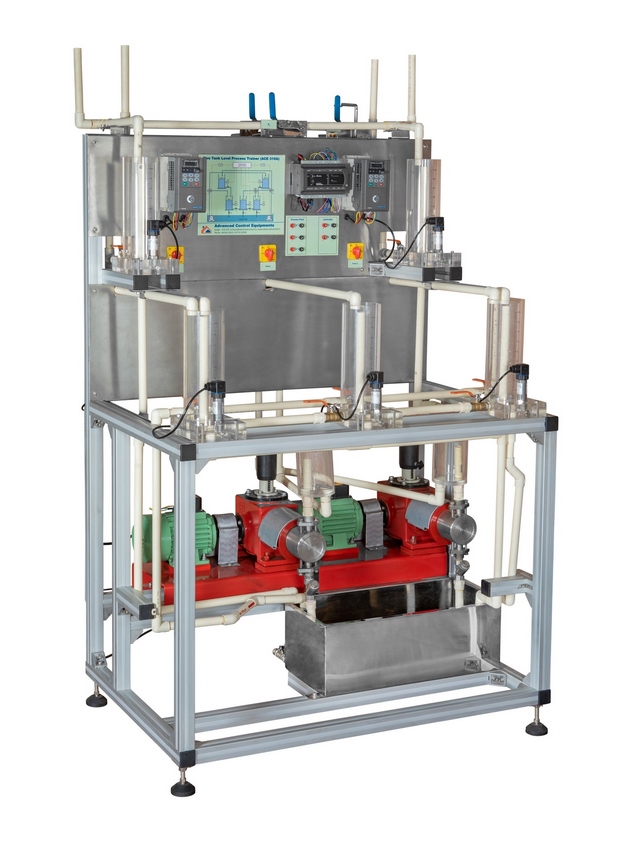

Five Tank Level Process Trainer (ACE 111)
Five Tank Level Process trainer (ACE 111) is designed to understand the basic level control principles and advanced study in complex systems. The setup consists of variable speed positive displacement pumps for water circulation, five transparent process tanks fitted with level transmitters and flow dampers.
Components
List of Experiments
|
